Nickel Alloy Incoloy 800 800h 800ht 825 925 Pipe and Tube
Basic Info.
| Size | 130mm-1200mm |
| Surface | Black and Bright |
| Certificaiton | ASTM, AISI, DIN, En, GB, JIS |
| Length | 5.8m, 6m or as Your Requirement |
| Transport Package | Standar Export Packing |
| Specification | 17.5cmx9.5cm |
| Trademark | cunrui |
| Origin | Jiangsu Cunrui |
| Production Capacity | 1000 Tons Per Tmonth |
Product Description
Nickel alloy Incoloy 800 800H 800HT 825 925 pipe and tube
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Bar,Pipe/tube,sheet/plate,Forging,Ring,Coil,Flange,Ribbon,Square pipe/bar, |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926;etc | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc | |
| Monel: Monel 400/K500/R405,etc | |
| Nitronic: Nitronic 40/50/60;etc | |
| Nimonic: Nimonic 75/80A/90/A263 ;etc | |
| Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics | 1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Inspection | ISO,SGS,BV and so on. |
| Packaging | All our products are packed, stored, transported according to the international regulation.Or as customer's requirement provide special packing. |
Inconel 601
Features: Inconel 601, an alloy.Have excellent oxidation resistance at high temperature, good carbonization resistance, good resistance to oxidation sulfur atmosphere, at room temperature and has good mechanical properties at high temperature as good resistance to stress corrosion cracking performance due to control the carbon content and grain size, 601 had a higher creep rupture strength, therefore it is recommended to use in the field of above 500 ºC, 601
Applications:
- Trays, baskets and fixtures used in various heat treatments such as carburizing and carbon nitriding.
- Refractory anchors, strand annealing and radiant tubes, high velocity gas burners, wire mesh belts etc.
- Thermal reactors in exhaust system of petrol engines.
- Fabricated combustion chambers.
- Tube supports and ash trays in the power generation industry.
Chemical Composition
| Ni | Cr | Fe | C | Mn | Si | Cu | Ai |
|---|---|---|---|---|---|---|---|
| 58-63 | 21-25 | balance | 0.01 max | 1.5 max | 0.50 max | 1.00 max | 1.0-1.7 |
| P | S |
|---|---|
| 0.02 max | 0.015 max |
Density and Melting point
| Density | Melting point |
|---|---|
| 8.1g/cm³ | 1320-1370 ºC |
Mechanical Properties
| Finish Condition | Tensile strength Rm N/mm² | Yield strength R P 0. 2N/mm² | Elongation (A 5%) Min | HB |
|---|---|---|---|---|
| Solution treatment | 650 | 300 | 30 | - |

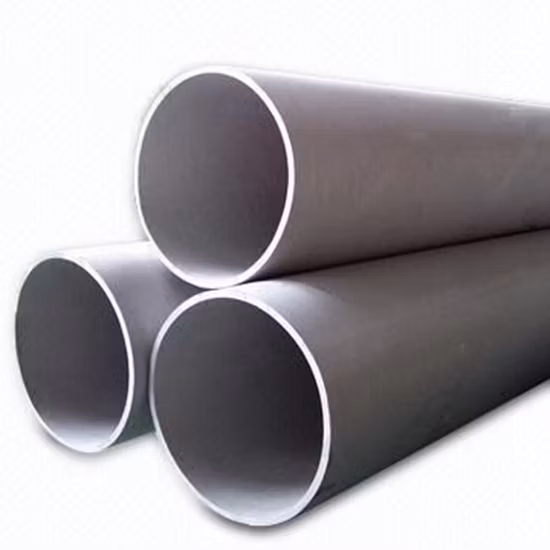

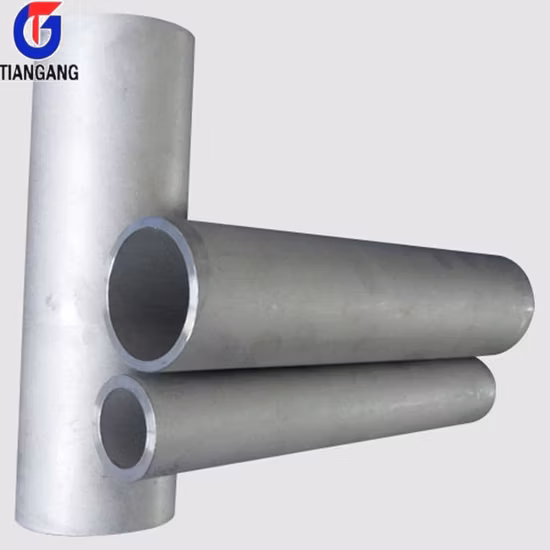

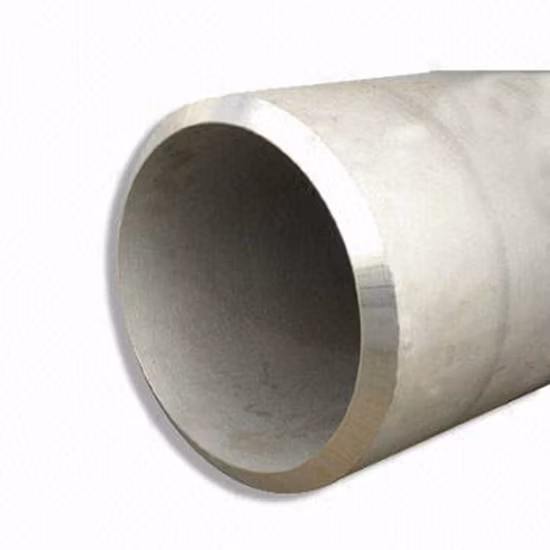

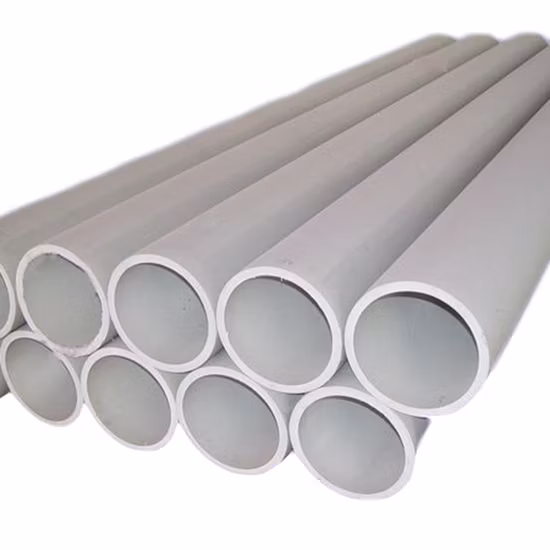

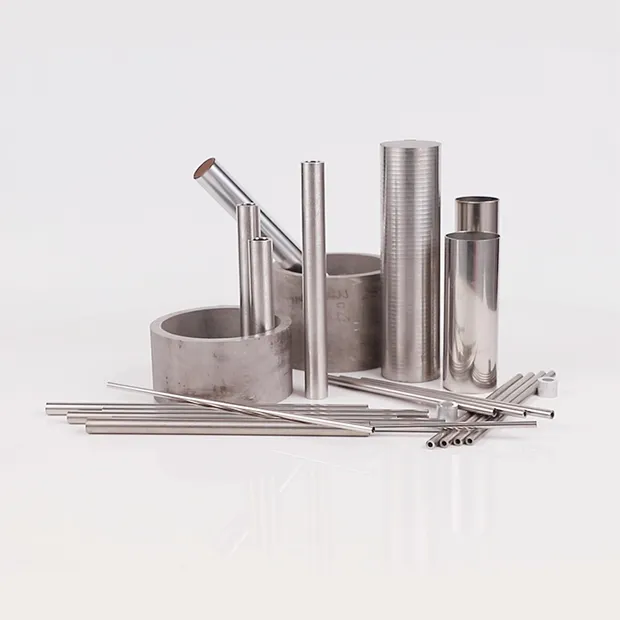

pictures of products
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Any further questions, please feel free to contact us!
