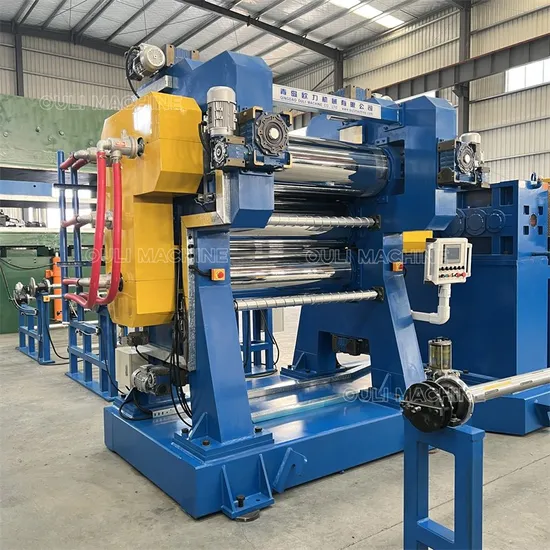

Long Warranty Roll Calender or Rubber Sheet Calender for Fire Shoes

Basic Info.

Model NO.	XY-2-450 XY-3-400 xy-4-500
Power Source	Electric
Type	Rubber Calender
Roll Bush	Bearing
Cooling	Water
Basement and Frame	Welding and Machining
Gearbox	Low Noise Hard Gear Reducer
Nip Adjusting	Mechanical or Manual or Hydraulic
Max Nip	15-25mm
Control	PLC
Application	Rubber Sheeting Line
Heating	Electricity / Oil / Steam
Lubrication	Automatic Dry / Thin Oil by Pump
Electric Parts	Chnt, Schneider, Siemens etc
Safety Device	Safety Curtain
Bearing	High-Temperature Resistance Bearing
Roll Material	Chilled Cast Iron, Hardness HS75, Baofeng Brand
Name	Rubber Sheet Calender
Transport Package	Standard Package, by Sea
Specification	20 CBM
Trademark	OULI
Origin	China
HS Code	8477800000
Production Capacity	300 Sets Per Year

Product Description

Long warranty roll Calender or rubber sheet calender for fire shoes
1 . COMPANY INFORMATION 1-1 OULI COMPANYEstablished in 1997 , Qingdao Ouli machine CO., LTD was located in Huangdao District, the west coast of Qingdao city,Shandong province ,China.Branches in Suzhou , Dalian etc were created in 2012 and 2015 .We are specialized in rubber machinery designing,manufacturing and maintenance works OULI main products:Rubber mixing equipment / Rubber vulcanizing machine / Automatic and semi-automatic waste tire recycling equipment / Rubber calendaring machine / Rubber extruding equipment / Reclaimed rubber production lineOur machines have been exported to more than 20 countries such as America, Canada, Australia, Southeast Asia, Middle East,Brazil .We warmly welcome customers visit factory and technology discussion is highly appreciated .1-2 OULI workshop
2. PRODUCT INTRODUCTION FOR Rubber Sheet Calender
2-1. Basic introduction for Rubber Sheet CalenderTwo roll rubber calender is used for calendering of rubber or plastics, fabric fraction and coating, sheeting and composite of rubber or plastics.
Three roll rubber calender is used for calendering of rubber or plastics, fabric fraction and coating, sheeting and composite of rubber or plastics.Four roll rubber calender is used for calendering of rubber or plastics, fabric fraction and coating, sheeting and composite of rubber or plastics.Fabric calendaring line is used for calendering rubber and fabric .It is widely used in bicycle ,motorcycle tire making .
2-2. Features for Rubber Sheet Calender

FOR MORE INFORMATION : oulimachine.en.made-in-china.com
2-3. Parameter for Rubber Sheet Calender

2-4. Configuration for Roll Calender 1. Rolls: Chilled Alloy Cast Iron rolls with surface hardness 68~72HS. The Rolls are mirror finished & polished, duly grinded and are hollowed for cooling or heating.2. Roll Clearance Adjusting Unit: Nip adjustment at two roller ends is done manually using two separate screws attached to the brass housing body.3. Roll Cooling: Universal Rotary joints with inner Spray pipes with Hoses and Headers. Piping is complete up to supply pipe terminal.4. Journal Bearing Housing: Heavy Duty Steel Casting Housing fitted with Anti Friction Roller Bearings.5. Lubrication: Full Automatic Grease lubrication pump for Anti Friction Roller Bearings fitted in dust sealed housing. 6. Stand Frame & Apron: Heavy Duty Steel Casting.7. Gearbox: Hard-tooth reduction gearbox, GuoMao brand.8. Base Frame: Common base frame heavy duty, Steel channel and MS plate fabricated accurately machined on which whole machine with Gearbox and motor are fitted.9. Electric Panel: Star Delta Electric operating panel with Auto Reversing, Voltmeter, Ampere, Overload protection relay, 3 Phase Indicator and Emergency Stop Switch.
3. CUSTOMER FEEDBACK4. EXHIBITION5. PACKAGE AND DELIVERY6. FAQ

Q1:Why choose Us?

1.More than 20 years history of OULI MACHINE factory.

6-8 years foreign sales experience staff, more efficiency and professional.

Engineers oversea service more than 20 countries .

2.ISO:9001,CE,BV certification approval

3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.

4.Short delivery date, No delay. Accept urgent order for prompt shipment.

Q2:What about delivery date?

It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.

Accept urgent order for prompt shipment.

Q3:What's the warranty statement?

OULI MACHINE warrants all the products manufactured by OULI MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, OULI MACHINE warranty covers ONLY the product itself.

OULI MACHINE will assume no liability for labor costs, installation costs, or other losses.

Your warranty rights will be honored

Only when the product has been installed and used properly as deemed by OULI MACHINE,OULIMACHINE will not repair products damaged by improper use or faulty installation.

Q4:What about OULI oversea service ?

OULI will arrange oversea setting up and training works if customer need .

Customer should pay for accommodation , tickets and salary .

Meanwhile OULI has branches in different areas like north America , Southeast Asia , Brazil etc , etc .
